Coulter Clamp Assembly Diagram
Easily identify nuts, bolts and parts required to attach coulter equipment to nearly any farm equipment manufacturers toolbar. Coulter clamps, lock washers and hex nuts can be ordered for farm equipment repair or replacement. Use the Coulter clamp assembly diagram below to help find coulter parts needed to get your equpment up and running.

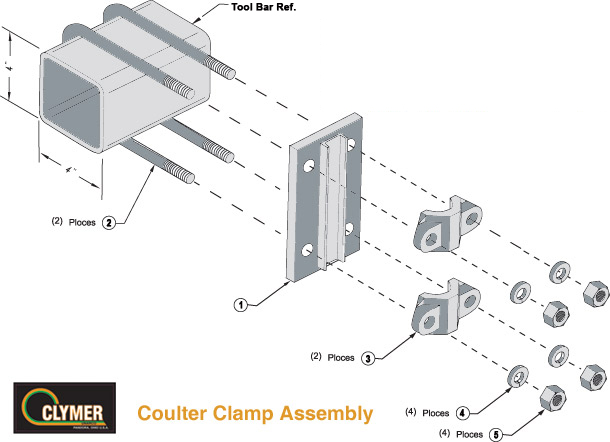

Coulter Clamp Assembly Diagram |
|||
| Key | Part No. | Description | Qty. |
| 10 | N340-1 | Clamp Plates | 1 |
| 2 | FBU677 | 5/8″ x 4-1/8″ x 1/2″ U-Bolt | 2 |
| 3 | N369 | Casting Clamp | 2 |
| 4 | FWL10 | 5/8″ Lock Washer | 4 |
| 5 | FNH10 | 5/8″ Hex Nut | 4 |
